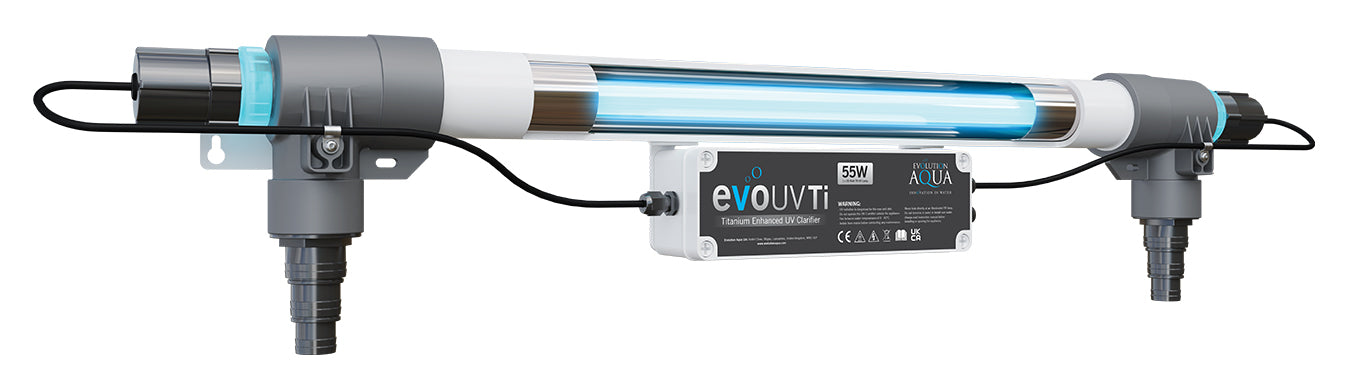

Evolution Aqua evoUV Ti, Titanium Enhanced UV Clarifier is up to 1.5 times more effective than a standard UV Unit. The evoUV Ti is made using the latest photocatalytic technology and is lined with a thick and polished titanium tube, to clear green pond water fast.
Titanium Enhanced UV Clarifier
Key Features
Clears green water fast - Up to 1.5x more effective than a standard UV.
Photocatalytic technology - Improves clarity by neutralising algae, bacteria and viruses.
High output, energy efficient ballast - Housed in a fully serviceable control box.
How it works?
Evolution Aqua evoUV Ti, Titanium Enhanced UV Clarifiers are made using the latest technology and are lined with a thick and polished titanium tube, to clear green pond water fast. When the UV light strikes the internal surface of the titanium chamber it produces an instant photocatalytic reaction and generates Hydroxyl Radicals, a powerful oxidant, that instantly destroys organic and inorganic matters, neutralising water-born algae, bacteria and viruses resulting in clearer water whilst being perfectly safe for all pond life.
Specifications
evo55 Ti
evo110 Ti
POND SIZE
Up to 55,000 litres
12,100 gallons
14,500 US gallons
Up to 75,000 litres
16,500 gallons
19,500 US gallons
OPTIMUM FLOW RATE
15,000 lph
3,300 gph
4,000 US gph
20,000 lph
4,400 gph
5,000 US gph
MAXIMUM FLOW RATE
20,000 lph
4,400 gph
5,000 US gph
25,000 lph
5,500 gph
6,000 US gph
Note: Maximum Flow Rate - There are a number of factors that can affect this, such as surface area of your pond, the amount of shade given to your pond and stocking levels. If in doubt, ask your dealer for advice.
Dimensions
evo55
The overall dimensions of evo55 Ti are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo55 Ti uses a standard 55W T8 UV bulb.
evo110
The overall dimensions of evo110 Ti are 990mm (l) x 195mm (w) x 280mm (h). The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo110 Ti uses two standard length 55W T8 UV bulbs.
